[Technical parameters of the entire vehicle]

Product trademark

Zhongjie brand

Announcement batch

358

product name

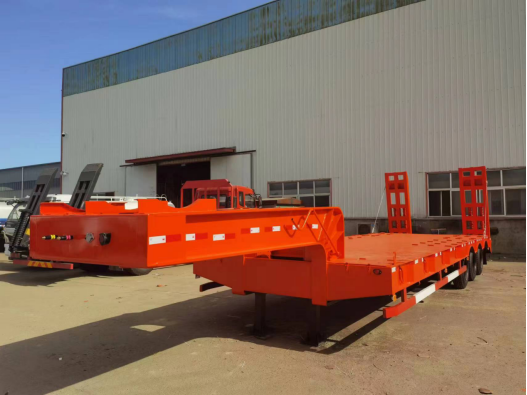

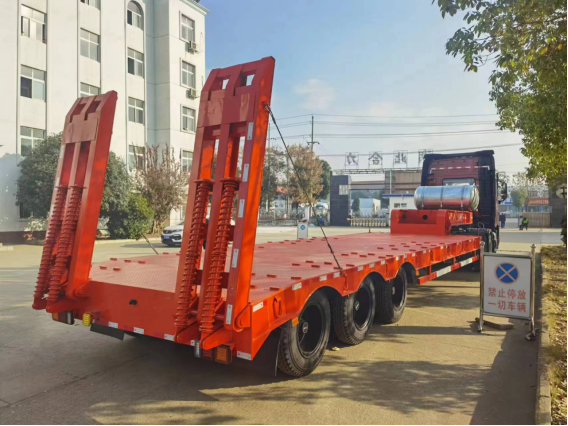

Low flatbed semi-trailer

Model

XZL9401TDP

Total mass (Kg)

40000

Tank volume (m3)

Rated load capacity (Kg)

30000

External dimensions (mm)

12000×3000×3100,2015

Curb weight (Kg)

10000

Cargo compartment size (mm)

××

Rated passenger capacity (person)

Total mass of quasi trailer (Kg)

Number of passengers allowed in the cab (person)

Maximum load capacity of saddle (Kg)

16000

Approach angle/departure angle (°)

-/16

Front/rear suspension (mm)

-/1200

Axle load (Kg)

-/24000(Three axis group)

Maximum speed (km/h)

notes

The height of the load-bearing surface of the cargo platform from the ground is 1080mm; Optional without ladder structure, the height without ladder is 2015mm. Only used for transporting non removable objects. The side protection adopts cold-formed steel/Q235-A and is connected by bolts. The rear protection is integrated with the vehicle structure, and the rear of the vehicle is 480mm above the ground. ABS production enterprises: Zhenjiang Baohua Semi trailer Parts Co., Ltd., Xi'an Zhengchang Electronics Co., Ltd., model: BH-2J28/44T, ZQFB-V. The horizontal length of the folded up and down ramp is 300mm. The gooseneck section is not allowed to carry goods, and the maximum width of the gooseneck section is 1445mm

[Other parameters of the entire vehicle]

Chassis Model

Chassis name

brand name

manufacturing enterprise

number of axles

3

Number of tires

12

Wheelbase (mm)

8180+1310+1310

Tire Size

8.25-20 16PR,8.25R20 16PR

Number of steel plate springs

-/8/8/8,-/10/10/10

Front wheelbase (mm)

-

fuel type

Rear wheelbase (mm)

2180/2180/2180

Emission standards
