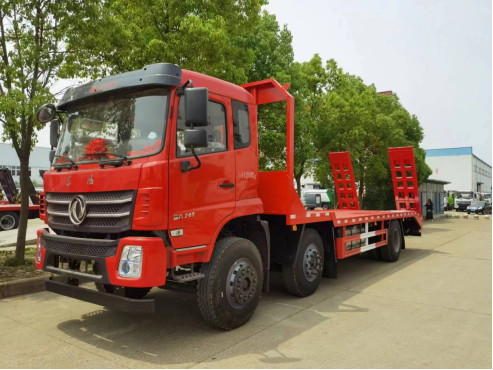

[Technical parameters of the entire vehicle]

Product trademark

Dongfeng brand

Announcement batch

377

product name

Flat transport vehicle

Model

EQ5250TPBGSZ6D1

Total mass (Kg)

25000

Tank volume (m3)

Rated load capacity (Kg)

12850,12785

External dimensions (mm)

10630×2500,2550×3350,3250,3150

Curb weight (Kg)

12020

Cargo compartment size (mm)

××

Rated passenger capacity (person)

Total mass of quasi trailer (Kg)

Number of passengers allowed in the cab (person)

2,3

Maximum load capacity of saddle (Kg)

Approach angle/departure angle (°)

29/13

Front/rear suspension (mm)

1515/1830,1475/1870

Axle load (Kg)

7000/7000/11000

Maximum speed (km/h)

89

notes

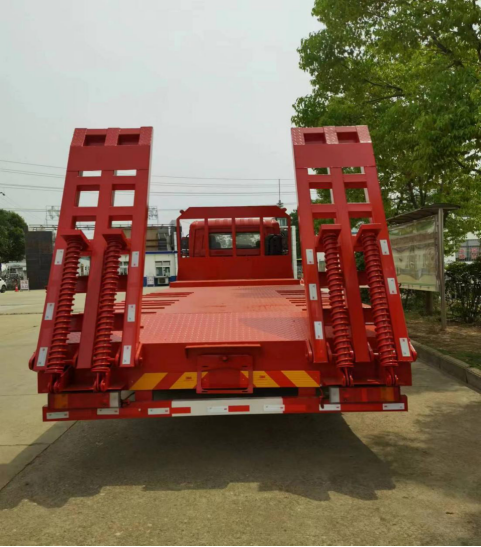

This vehicle is only used for transporting non detachable objects. Side and rear protective materials: Q235, side protection connection method: welded connection with the flat longitudinal beam, rear protection connection method: bolted connection; Rear protection section size/ground height: 60 × 120/400 (mm). With the optional changes in the shape of the front face of the driver's cab on the chassis, a sunshade is installed and a post-treatment structural form is selected; Only select wheelbase (mm): 1850+5800. Optional ladder style. This model can be equipped with ETC onboard device. The vehicle is equipped with a driving recorder with satellite positioning function ABS manufacturer; Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., Zhejiang Wanan Technology Co., Ltd., model: 3631010-C2000, VIE ABS-II. The corresponding relationship between engine/fuel consumption value (L/100km) is WP7.270E61/31.6, YCK05230-60/30.5, YCS06245-60/31.8, B6.2NS6B230/31.8, YCS06270-60/31.4

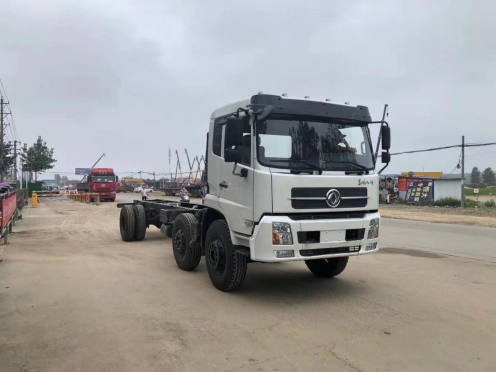

[Chassis Technical Parameters]

Chassis Model

EQ1250GSZDJ

Chassis name

truck chassis

brand name

Dongfeng brand

manufacturing enterprise

Dongfeng Commercial Vehicle Co., Ltd

number of axles

3

Number of tires

8

Wheelbase (mm)

1850+2700,1850+4350,1850+5450,2150+4550,2150+5150,3400+1350,1850+3500,1850+4750,1850+5800,1995+3200,1995+3500,1995+4100,1995+5000

Tire Size

11.00R20 18PR,295/80R22.5 18PR,12R22.5 18PR,295/60R22.5 18PR

Number of steel plate springs

8/8/10+8,10/10/10+8,10/10/12+9,3/3/4+3,3/3/10+8

Front wheelbase (mm)

1860/1860,1910/1910,1940/1940,1960/1960

fuel type

diesel oil

Rear wheelbase (mm)

1750,1860,1880,1630,1800

Emission standards

Euro III

Engine model

Engine Manufacturer

Displacement (ml)

Power (Kw)

B6.2NS6B210

Dongfeng Cummins Engine Co., Ltd

6200

155
