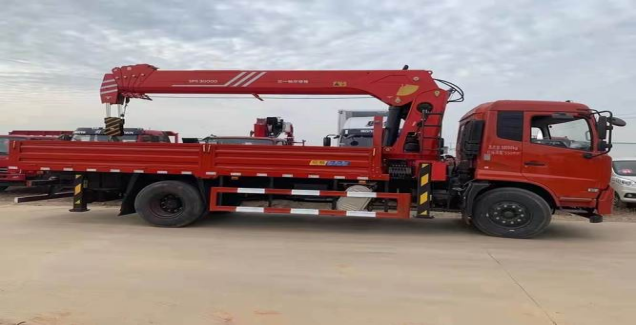

XZL5181JSQA truck parameters for on-board lifting and transportation
XZL5181JSQA truck parameters for on-board lifting and transportation
Hubei Xinzhonglv Special Vehicle Co., Ltd
No. 8, Liangshui Industrial Zone, Suizhou City
Vehicle Description
1. Overview
Vehicle mounted crane specifications Chassis configuration: Dongfeng Tianjin cab, Yuchai 260 horsepower, front axle 4.5 ton drive axle, rear axle 10 ton drive axle, Faust ten speed gearbox, T1000 differential gearbox, 1100 steel wire tires, with air conditioning.National III emissions Crane configuration: 7-ton 4-section extended straight arm, lifting height of 15 meters, working radius of 13.5 meters, with front and rear hydraulic support legs, span of more than 5 meters, upward operation, automatic hook retraction |
2. Main parameters of the entire vehicle
Overall dimensions | 9000×2550×3850mm |
Maximum total mass | 18000kg |
Container size | 5600*2450*550mm |
maximum speed | 89km/h |
Rated load capacity | 5810 |
curb weight | 12060 |
Number of people in the cab | 3. 2 |
Front/rear | 1450/2550 |
Approach/departure angle | 16°/10° |
Chassis
1、Parameters
model | DFH1180B |
manufacturer | Dongfeng Motor Co., Ltd |
Engine power rating | 191kw 260horsepower |
Displacement | 6200ml |
Engine emission standards | GB3847-2005,GB17691-2018 National 3 |
Driving form | 4×2 |
wheelbase | 4700mm |
Maximum allowable total weight | 18000g |
Transmission | hand movement |
2、Passenger compartment
structure | A row and a half with sleeper beds |
|
Number of drivers and passengers | 3 people | |
Driver's position | Right placement | |
device | Install a control box at the original vehicle dashboard, 1. Alarm; 2. Power output control switch and indicator light; 3. Additional power switch; |
Upper structure and performance parameters
Overall layout | The whole car consists of three main parts: the cab and the body. The body layout adopts a three part structure, and a truck mounted crane is installed between the driver's cab and the cargo box |
| |
Equipment box and pump room

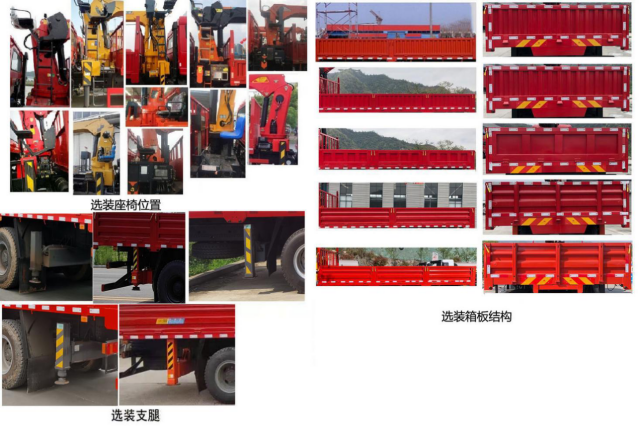

structure | The chassis adopts double-layer local three-layer beams, and the crane is reinforced and connected to the chassis, with front and rear hydraulic support legs. The cargo box is made of high-quality carbon steel plate bent and reinforced, and the bottom plate is thickened. The cargo box is elastically connected to the chassis |
|

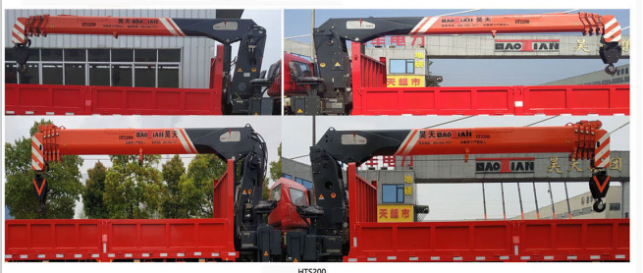

Parameters of 8T crane
Parameters of an 8-ton overhead crane
Working radius of 11.5 meters, lifting height of 13.5 meters, rated lifting weight of 8000KG, rated lifting torque of 20T. m, octagonal basic arm section form, amplitude range of 0-75 degrees, fully hydraulic full rotation, support leg span of 6600mm, system flow rate of 160L/min, crane self weight of 3315 Kg, system rated pressure of 25Mpa.
·High single action speed: Adopting a dual speed winch, ultra-high pressure, and large displacement hydraulic system, the single action speed is fast for telescopic and rope arrangement, with an efficiency higher than the industry by more than 10%
·Unique combination action skill: Humanized operation device design, allowing for simultaneous operation with both hands, allowing for free combination of movements such as extension, rotation, amplitude change, and takeoff and landing, with an efficiency higher than the industry level by more than 50%
·Sensitive response: The pilot full proportion control valve has a sensitive and flexible action response, allowing for easy operation and release
·Positioning: Smooth movement, positioning, capable of completing difficult and high-precision lifting tasks
·Fuel saving: The crane weighs 500-1000 kilograms lighter and can be lifted while the engine is idling, saving 30% fuel
·Convenient: The crane has a low failure rate, and a large number of maintenance free designs are adopted, making maintenance economical and simple, reducing usage costs by 30%
·Worry free: timely and thoughtful service, one phone call to solve any problems, saving maintenance costs by 30% -50%
·Strong homework ability: Strong lifting capacity, ultra long lifting range, increased homework ability by 10% -20%
·Continuous operation: can operate continuously in high temperature and heavy load environments, with an efficiency increase of over 30%
Container Introduction:
The structure and material of the cargo box should adopt an integrated cargo box with connecting and auxiliary beams, because the operation object of the truck mounted crane is relatively complex and needs to face the lifting and transportation of various goods and other objects. To ensure that the cargo box is not damaged, crushed, or collided, an integrated cargo box with connecting and auxiliary beams should be selected. The integrated cargo box is made of whole steel plate stamping, with strong toughness, high hardness, and great compressive and collision resistance, Integrated containers can be divided into: iron wood integrated containers, fully folded steel integrated containers, and fully steel plate integrated containers according to customer needs and work objects.
