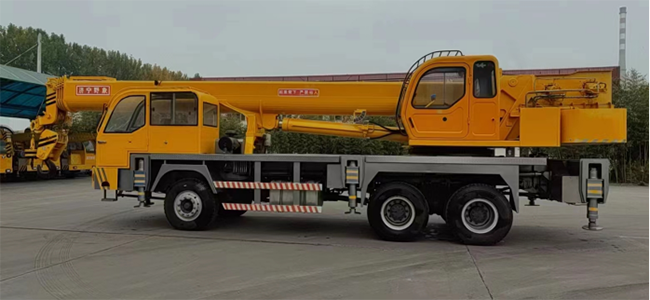

STSQ25D 25 ton self-made crane parameters (rear double axle, three rows of legs, telescopic frame)

model

STSQ25D

Main hook winch

25T inclined shaft winch

Maximum lifting capacity

25000kg

Auxiliary hook winch

10 ton inclined shaft winch

Maximum lifting height

41M

Gear reducer model

ZJHX85A

lifting arm

10 meters * 5 knots

Rotary support

1400#

Leg span (longitudinal * transverse)

To

6.68 meters * 9.54 meters

Engine pump

100/36/32Three pumps

Expansion and contraction of the main frame

1.5 meters

Frame size

520*210*12mm

External dimensions

12300*2580*3350mm

Center rotation

Center rotation

Lifting speed

130/80(m/min)

Big arm size

U879*674mm

rotation speed

0-3(r/min)

Front and rear support legs

standard configuration

wheelbase

5.5 meters

Axle model

Rear double bridge

Crane chassis parameters

Engine model

YC6L290-33

Directional form

Directional assistance

Engine power

213kw/290hp

Brake form

Air brake

tire

11.00R20

Transmission

Faust 8JS118TB-B

Speed

60Km/h

dead-weight

32.8T

Telescopic counterweight

0.7m
