XZL5160GSS
Zhongjie Dongfeng Huashen 8~10 square sprinkler truck
The first standardized assembly line in the country | Real choices for over 40000+users
Modular design, standardized production, 14
processes, full assembly without welding,
sprinkler truck boundary No.1
Technical Parameter
project | parameter | notes | |
Vehicle model | XZL5160GSSE | ||
wheelbase（mm） | 3950 | ||
Engine model | Cummins 210 | Euro III emissions | |
Engine power（kW） | 155 | ||
External dimensions | |||
7800*2500*3100 | |||
curb weight（kg） | 5675,6240 | ||
Maximum total mass（kg） | 16000 | ||
Working speed（km/h） | engine speed 1500r/min | On site gap work | |
Effective volume of the box（m3） | 10 | ||
Tank material | High quality carbon steel (4mm thick) | ||
Front flushing water spraying width | 15-30M | ||
Rear platform sprinkler anti-aircraft gun | Dust 30-35, anti-aircraft gun can be adjusted 360 degrees | ||
Dedicated sprinkler pump | High power water pump with a vertical suction head of 6M | ||
General Function Configuration | Wan Forward Sprinkler, Back Sprinkler, Side Sprinkler, S-shaped Sprinkler | ||
Product features

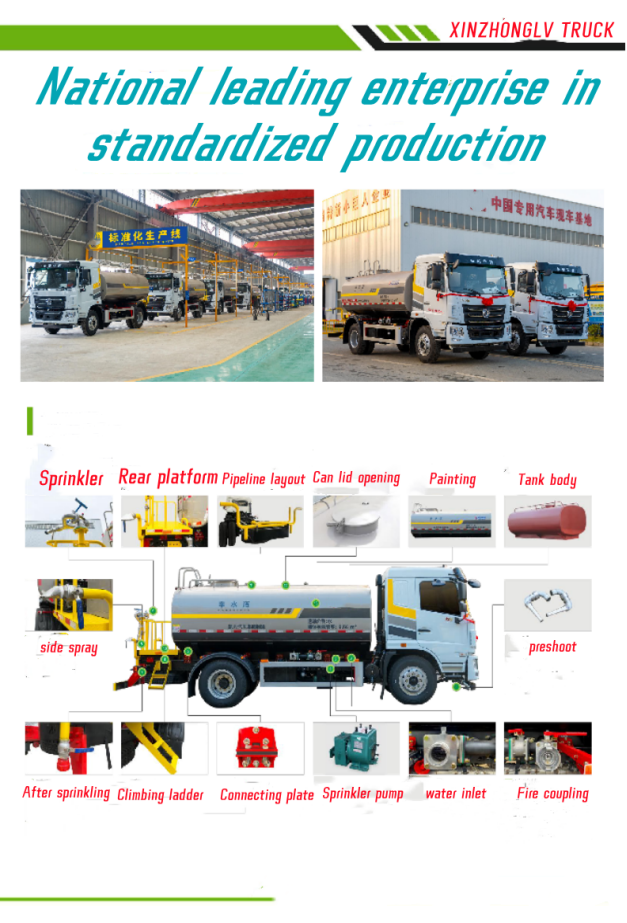

●Standardized assembly line production, modern appearance, modular design, full assembly without welding, 14 processes,
●The entire process takes 90 minutes to complete the offline process.

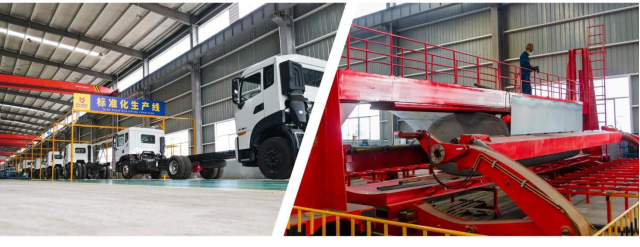

The tank body adopts an automatic assembly line production process: cutting, automatic welding of splicing plates, head spinning forming, and tank body one
●Domestic advanced production processes such as secondary packaging can forming and circular automatic welding.
●Adopting a specialized customized high-power water pump, it has excellent performance, reliable operation, high efficiency, and large flow rate

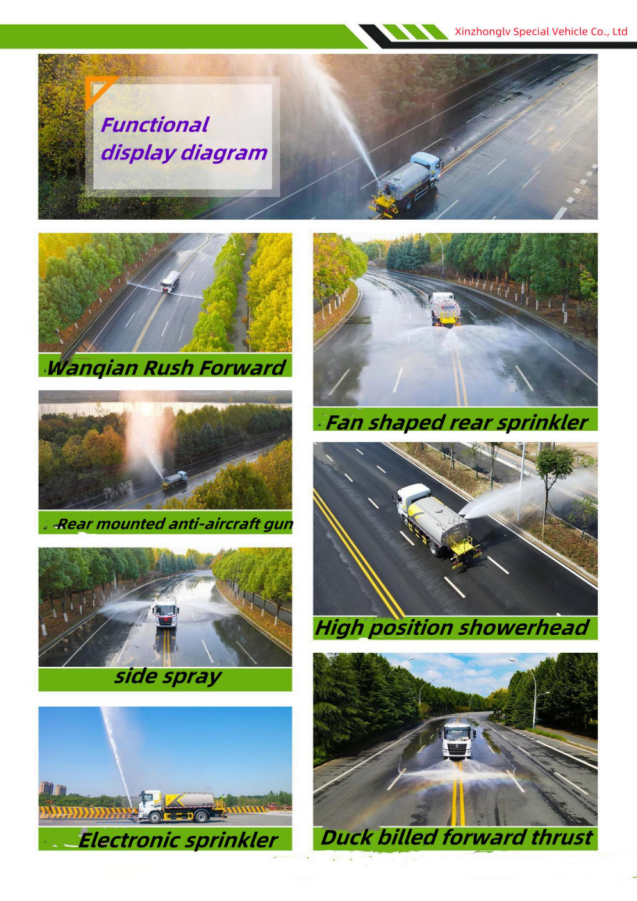

●With characteristics such as forward charging up to 8 lanes in both directions, rear spraying up to 4 lanes in both directions, and anti-aircraft guns capable of firing up to 40 meters in maximum Cheng.
●The inlet pipeline adopts 89 pipes, which have a large inlet volume, saving water filling time and promoting work efficiency.
●The tank body and the auxiliary beam are connected by connecting plate bolts, which may cause bumps and poor road conditions during vehicle operation
●The tank body and auxiliary beam are less prone to displacement and other unsafe factors, and have stronger safety and firmness.
●The tank body and inlet/outlet adopt Φ 89 hose connections to reduce damage to pipelines and auxiliary beams caused by friction during driving injury The connection between the tank body and the main beam is double supported, with stronger support and higher safety.
●There are two drainage outlets at the bottom of the tank, which can better drain the residual water inside the tank in winter to prevent freezing and cracking.
●Shorten the guardrail of the tank after the manhole is moved, and add a ladder at the entrance to facilitate inspection inside the tank.
●The connection plate of the rear platform is connected, and the platform surface is a punched platform, which enhances the load-bearing capacity and prevents slipping and deformation.
●Acrylic organic glass hollow bright tube, beautiful and practical; The flange seal is a O-ring, which is more sealed and durable.
●The water tank of the entire vehicle has compartments 2-3, with a through-hole at the lower end of the partition and an anti wave plate inside to reduce the liquid inside the tank during driving The impact of the body.The connection of the side protective circular pipe is a bent part connection, which improves the firmness coefficient.
●Adopting electrophoretic technology, the coating has high transparency and fullness, with special luster, transparency, and three-dimensional effect

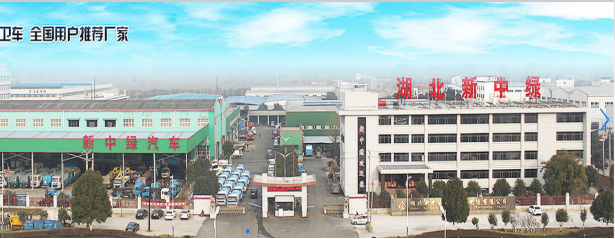

Company Profile
 |
Hubei Xinzhonglv Special Vehicle Co., Ltd. integrates product development, production and manufacturing, product sales, and after-sales service. The company has introduced domestic and foreign production and testing equipment, with strong technical strength, stable product quality, complete after-sales network, and flexible business operations. The leading products currently occupying the * * market include sprinkler trucks, spray trucks, suction trucks, suction trucks, compression garbage trucks, swing arm garbage trucks, hanging bucket garbage trucks, detachable garbage trucks, road sweepers, high-pressure cleaning trucks, docking garbage trucks, obstacle clearing trucks, high-altitude operation vehicles, and truck mounted cranes, totaling more than 200 brands in 16 series. The company adheres to the business philosophy of "quality for survival, reputation for development, technological innovation, and service for brand creation". With the corporate tenet of "integrity, pragmatism, innovation, and progress", we continuously improve the quality of our products and develop multi-functional special vehicles that meet market demand with high quality and good prices. The company is located in Suizhou City, Hubei Province, the hometown of Emperor Yan, the founder of China, Shennong, the hometown of chimes and ancient music, and the capital of specialized automobiles.
